Kubernetes

What is Kubernetes?

Kubernetes is an orchestration tool for containers, and it is designed to automate the deployment, scaling, and management of containerized applications.

Namespaces

Namespaces are a way to divide cluster resources between multiple users (via resource quota).

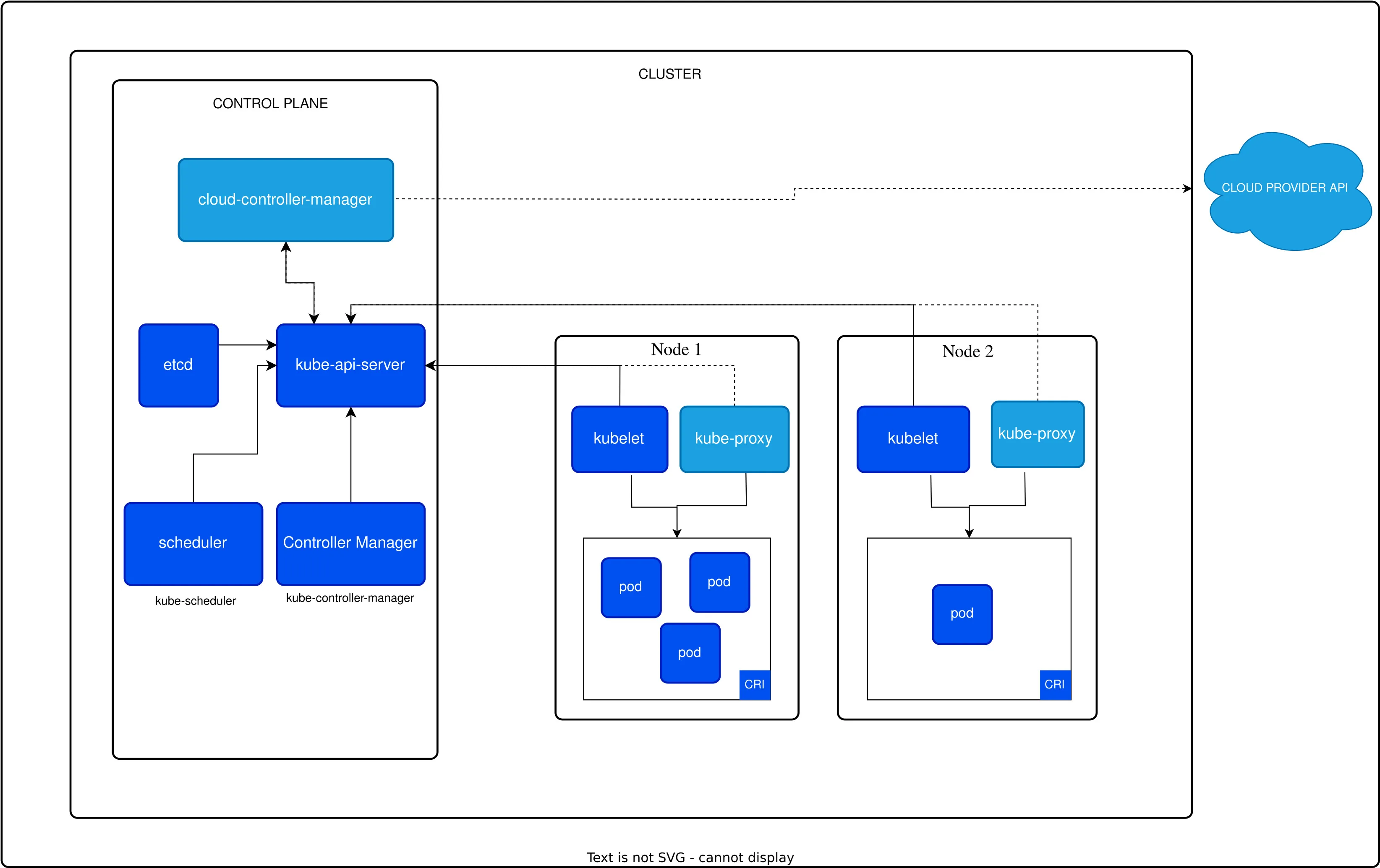

Kubernetes Architecture

Cloud Controller Manager

The cloud controller manager lets you link your cluster into your cloud provider’s API, and separates out the components that interact with that cloud platform from components that just interact with your cluster.

API Server

The API server is a component of the Kubernetes control plane that exposes the Kubernetes API. The API server is the front end for the Kubernetes control plane.

Scheduler

The Kubernetes scheduler is a control plane process which assigns Pods to Nodes. The scheduler determines which Nodes are valid placements for each Pod in the scheduling queue according to constraints and available resources.

Controller Manager

The controller manager is a daemon that embeds the core control loops shipped with Kubernetes. In a default installation, the controller manager runs a number of core control loops, such as the replication controller loop.

etcd

Consistent and highly-available key value store used as Kubernetes backing store for all cluster data.

Node Components

Node

A node is a worker machine in Kubernetes, previously known as a minion. A node may be a VM or physical machine, depending on the cluster. Each node contains the services necessary to run Pods and is managed by the control plane.

Kubelet

An agent that runs on each node in the cluster. It makes sure that containers are running in a Pod.

Kube Proxy

Kube-proxy is a network proxy that runs on each node in your cluster, implementing part of the Kubernetes Service concept. A network proxy is a program that accepts network traffic on a port and forwards it to a destination.

Container Runtime

The container runtime is the software that is responsible for running containers. Kubernetes supports several container runtimes: Docker, containerd, CRI-O, and any implementation of the Kubernetes CRI (Container Runtime Interface).

Pods

A Pod is the basic execution unit of a Kubernetes application. A Pod represents a single instance of a running process in your cluster. Pods contain one or more containers, such as Docker containers. When a Pod runs multiple containers, the containers are managed as a single entity and share the Pod’s resources.

Services

A Service in Kubernetes is an abstraction which defines a logical set of Pods and a policy by which to access them. Services enable a loose coupling between dependent Pods. A Service is defined using YAML or JSON, like all Kubernetes objects.

Deployments

A Deployment provides declarative updates to Pods and ReplicaSets. A Deployment is defined using YAML or JSON, like all Kubernetes objects.

ConfigMaps

Config Maps is like Secret, but it is used to store non-sensitive data.

Secrets

A Secret is an object that contains a small amount of sensitive data such as a password, a token, or a key.

Volumes

A volume is a directory, possibly with some data in it, which is accessible to the containers in a pod.

StatefulSets

StatefulSets are a way to run stateful applications on Kubernetes.

DaemonSets

A DaemonSet ensures that all (or some) Nodes run a copy of a Pod.

Jobs

A Job creates one or more Pods and ensures that a specified number of them successfully terminate.

CronJobs

A CronJob creates Jobs on a repeating schedule.

Persistent Volumes

A PersistentVolume (PV) is a piece of storage in the cluster that has been provisioned by an administrator or dynamically provisioned using Storage Classes.

Role-Based Access Control (RBAC)

Role-based access control (RBAC) is a method of regulating access to computer or network resources based on the roles of individual users within your organization.

ReplicaSets

A ReplicaSet’s purpose is to maintain a stable set of replica Pods running at any given time.

Kubernetes Objects

Kubernetes objects are persistent entities in the Kubernetes system. Kubernetes uses these entities to represent the state of your cluster. Specifically, they can describe:

What containerized applications are running (and on which nodes)
The resources available to those applications
The policies around how those applications behave, such as restart policies, upgrades, and fault-tolerance
Kubernetes deploy simple application
Deploy container with yaml file
Deploy storage with yaml file
Deploy Guestbook with yaml file

Kubelet Commands

kubectl apply is best to use to take advantage of version control, while kubectl create is a good option if you are experimenting or troubleshooting.

# Get all pods
$ kubectl get pods
$ kubectl get pods

# Get all services
$ kubectl get services
$ kubectl get svc

# Get all deployments
$ kubectl get deployments

# Get all nodes
$ kubectl get nodes

# Get all namespaces
$ kubectl get namespaces

# Get all configmaps
$ kubectl get configmaps

# Get all secrets
$ kubectl get secrets

# Get all persistent volumes
$ kubectl get pv

# Get all storage classes
$ kubectl get sc

# bash into a pod
$ kubectl exec -it <pod-name> -- /bin/bash

# Get logs of a pod
$ kubectl logs <pod-name>

# Get events
$ kubectl get events

Deployments File

# Create a deployment with a yaml file
$ kubectl create -f deployment.yaml

# Create a deployment
$ kubectl create deployment nginx --image=nginx:1.14.2

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment
    labels:
        app: nginx
spec:
    replicas: 3
    selector:
        matchLabels:
        app: nginx
    template:
        metadata:
        labels:
            app: nginx
        spec:
        containers:
        - name: nginx
            image: nginx:1.14.2
            ports:
            - containerPort: 80

Services File

# Create a service with a yaml file
$ kubectl create -f service.yaml

# Create a service
$ kubectl expose deployment nginx-deployment --type=NodePort --name=nginx-service

apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
    selector:
        app: nginx
    ports:
        - protocol: TCP
        port: 80
        targetPort: 80
    type: NodePort

Volume File

# Create a Volume with a yaml file
$ kubectl create -f volume.yaml
$ kubectl apply -f volume.yaml

# Delete a Volume with a yaml file
$ kubectl delete volume <volume-name>

apiVersion: v1
kind: Pod
metadata:
  name: configmap-pod
spec:
  containers:
    - name: test
      image: busybox:1.28
      command: ['sh', '-c', 'echo "The app is running!" && tail -f /dev/null']
      volumeMounts:
        - name: config-vol
          mountPath: /etc/config
  volumes:
    - name: config-vol
      configMap:
        name: log-config
        items:
          - key: log_level
            path: log_level
