VPCs, Peer Connection, CloudWatch

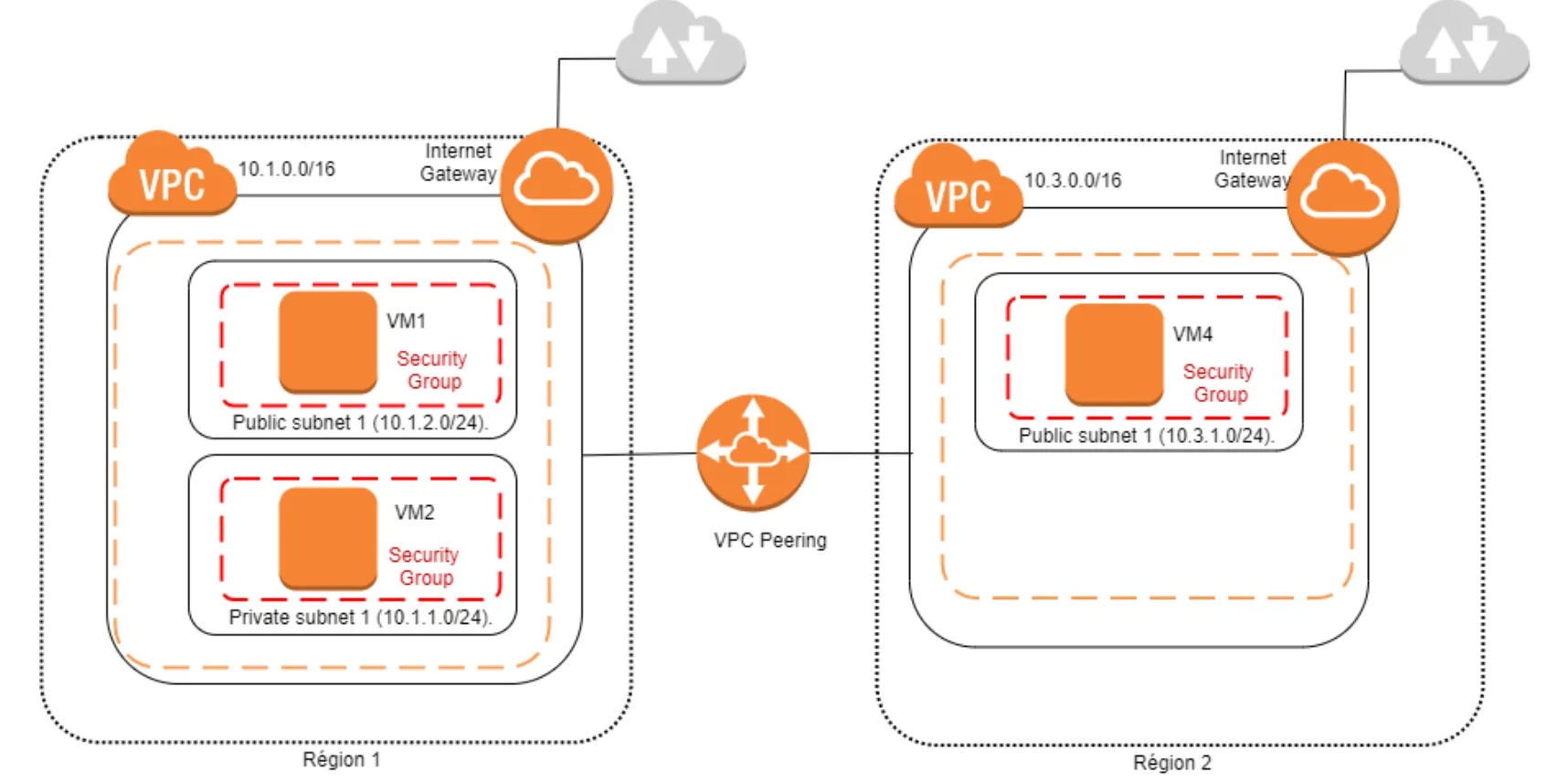

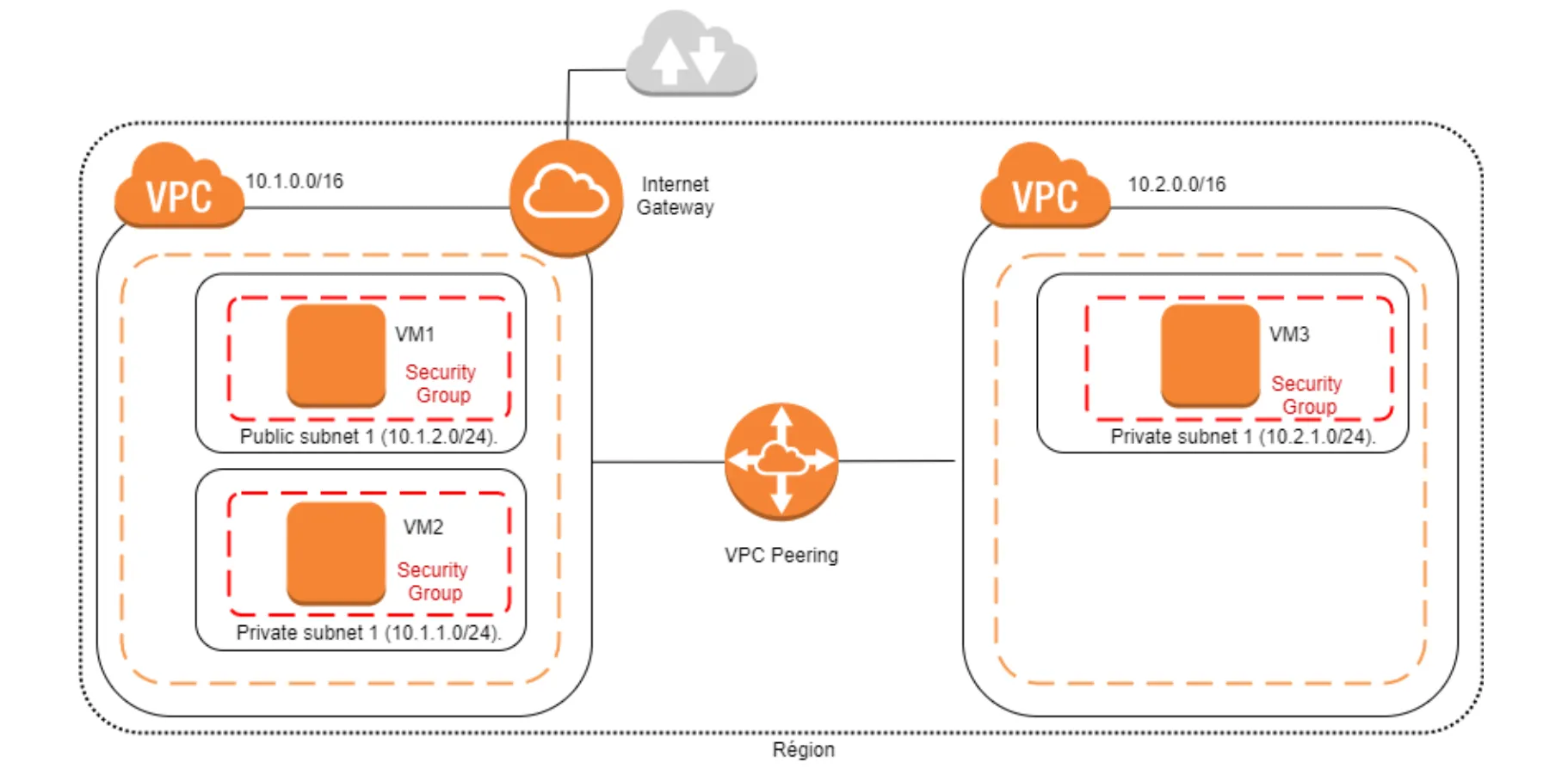

Part 1 : Architecture

1.1 : Create a VPC_1

• name : my-vpc1-ab = 10.7.0.0/16
• Region eu-west-2

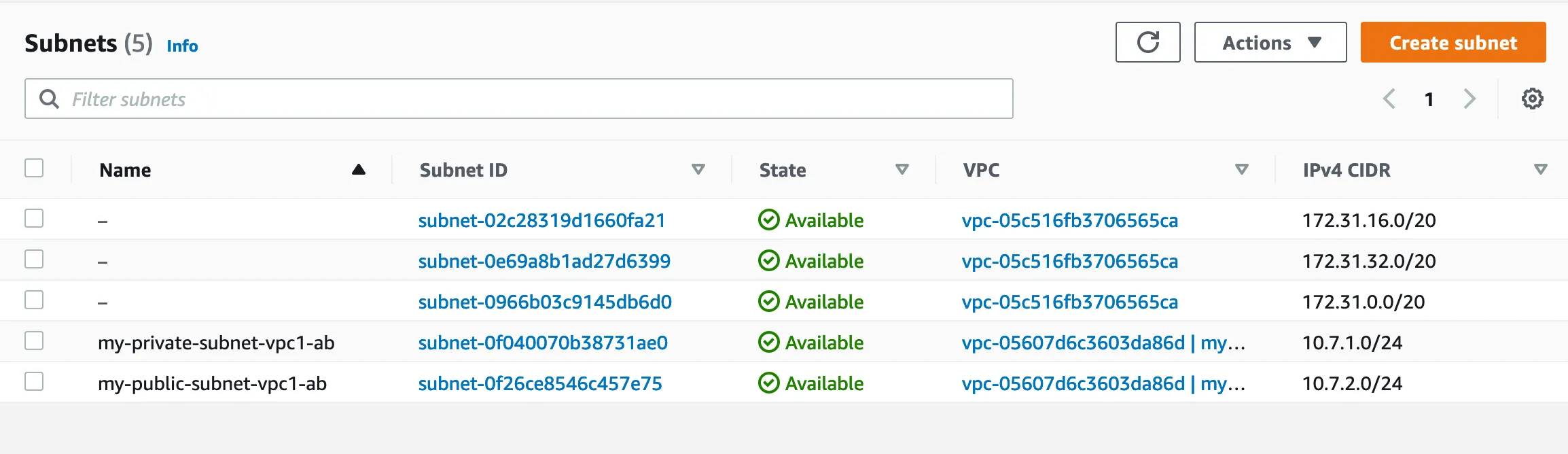

Subnets :

- my-private-subnet-vpc1-ab = 10.7.1.0/24
- my-public-subnet-vpc1-ab = 10.7.2.0/24

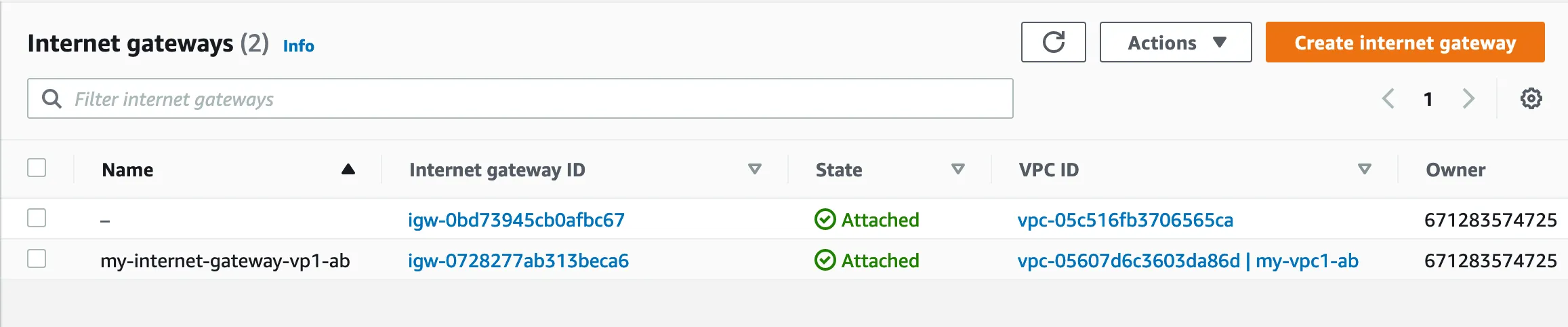

Internet Gateway : my-internet-gateway-vpc1-ab

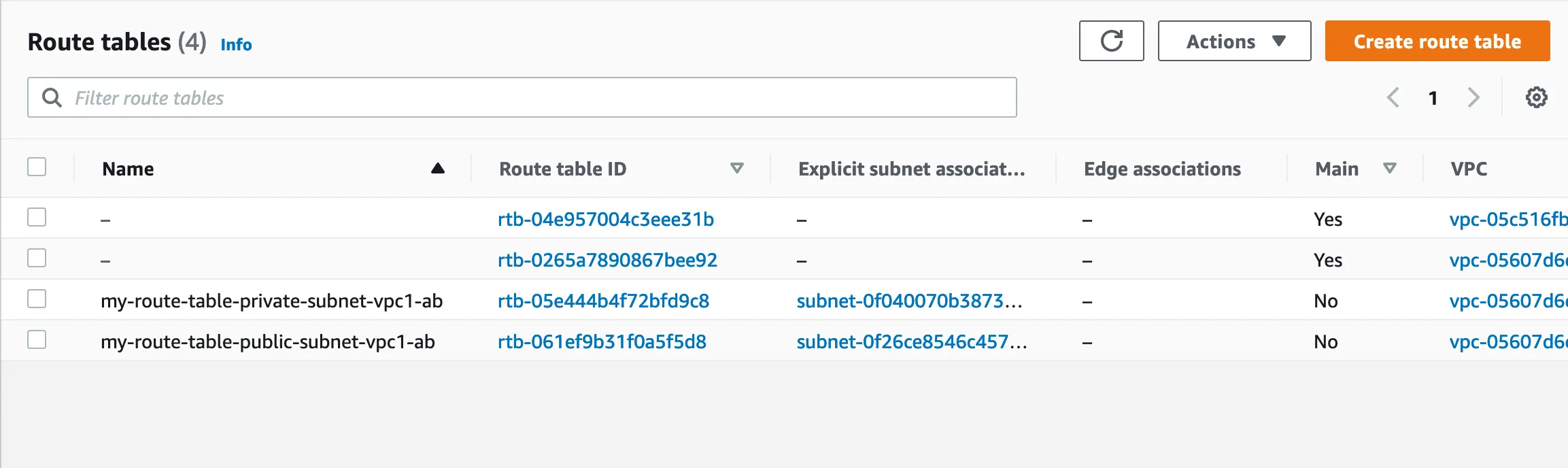

Route Table :

- my-route-table-private-subnet-vpc1-ab
- my-route-table-public-subnet-vpc1-ab

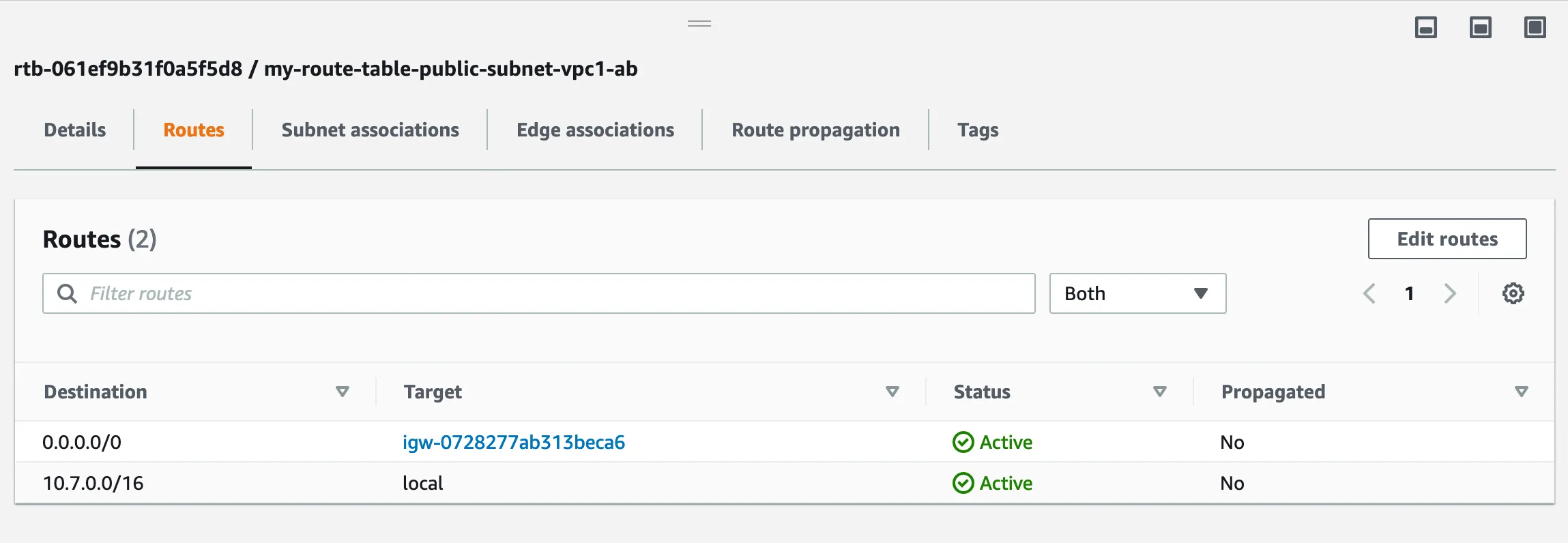

Internet Connection :

1.2 : Create a VPC_2

name : my-vpc2-ab = 10.8.0.0/16

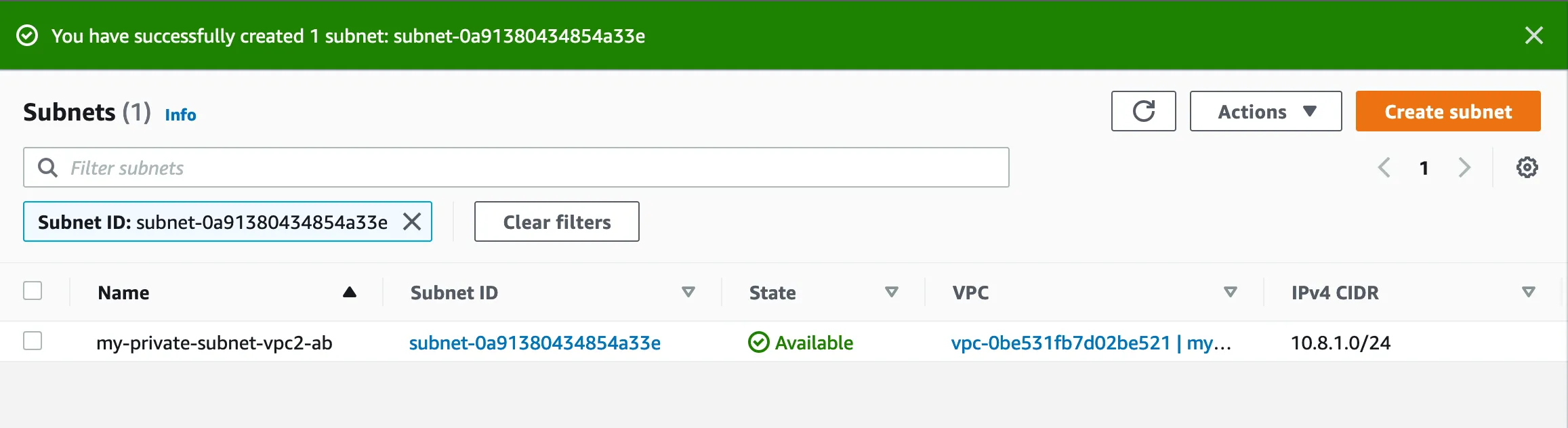

Subnets :

- my-private-subnet-vpc2-ab = 10.8.1.0/24

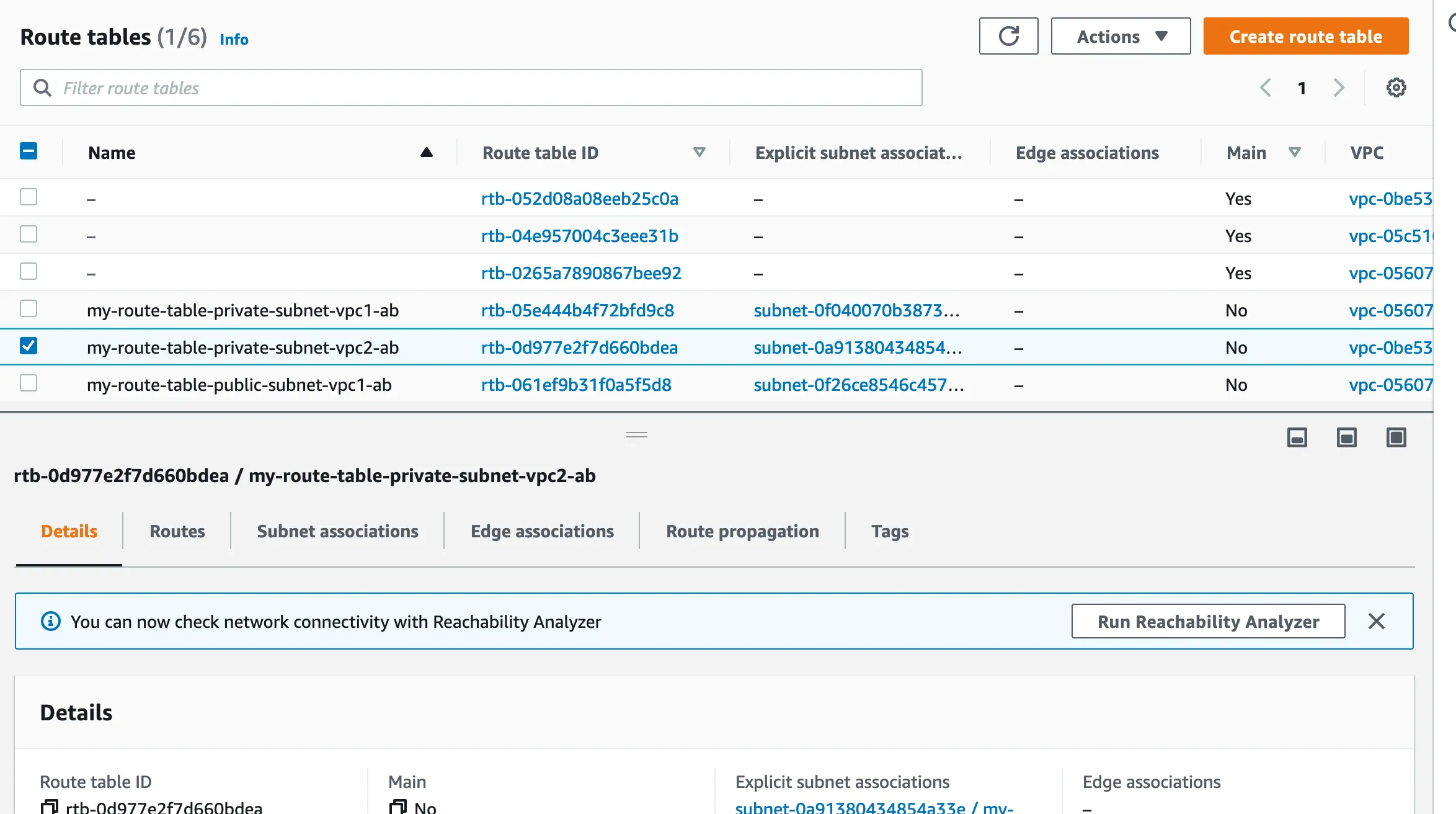

Route Table :

- my-route-table-private-subnet-vpc2-ab

1.3 : Create a Instances

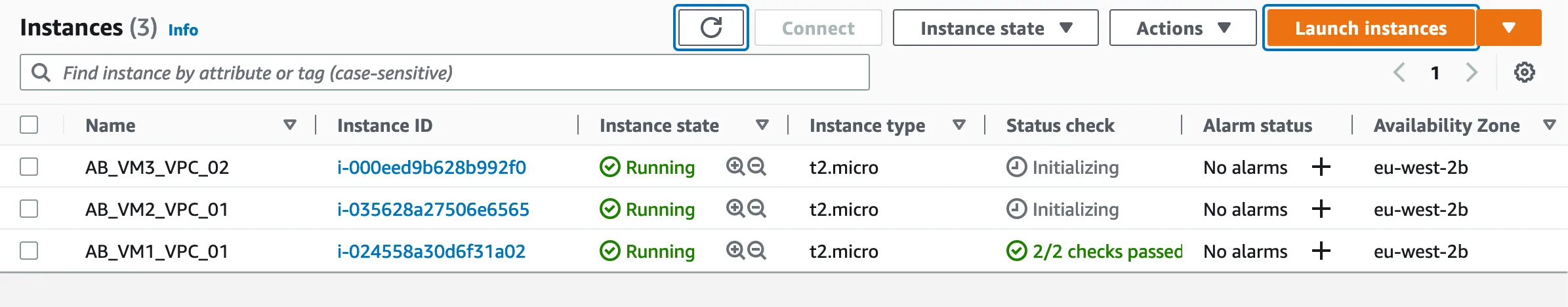

Instance creation :

- AB_VM1_VPC_01
- AB_VM2_VPC_01
- AB_VM3_VPC_02

1.4 : Ping test

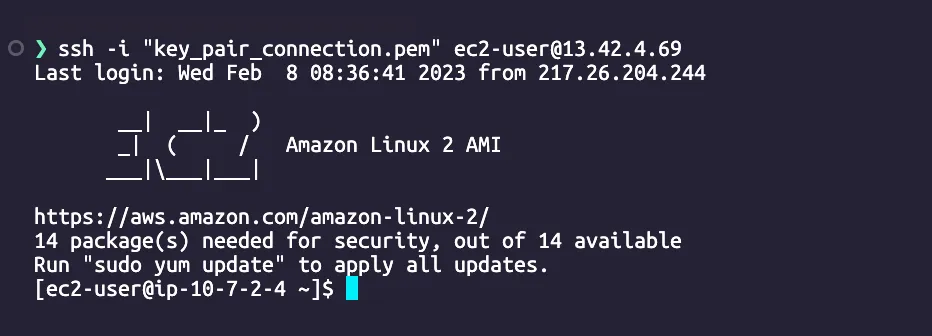

AB_VM1_VPC_01 ssh connection :

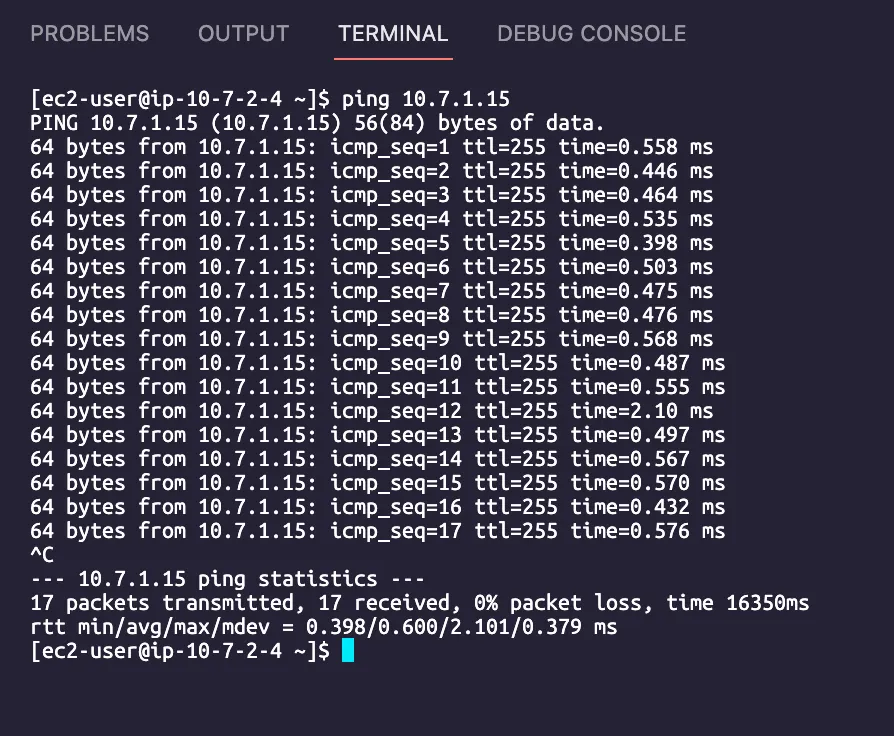

Ping AB_VM2_VPC_01

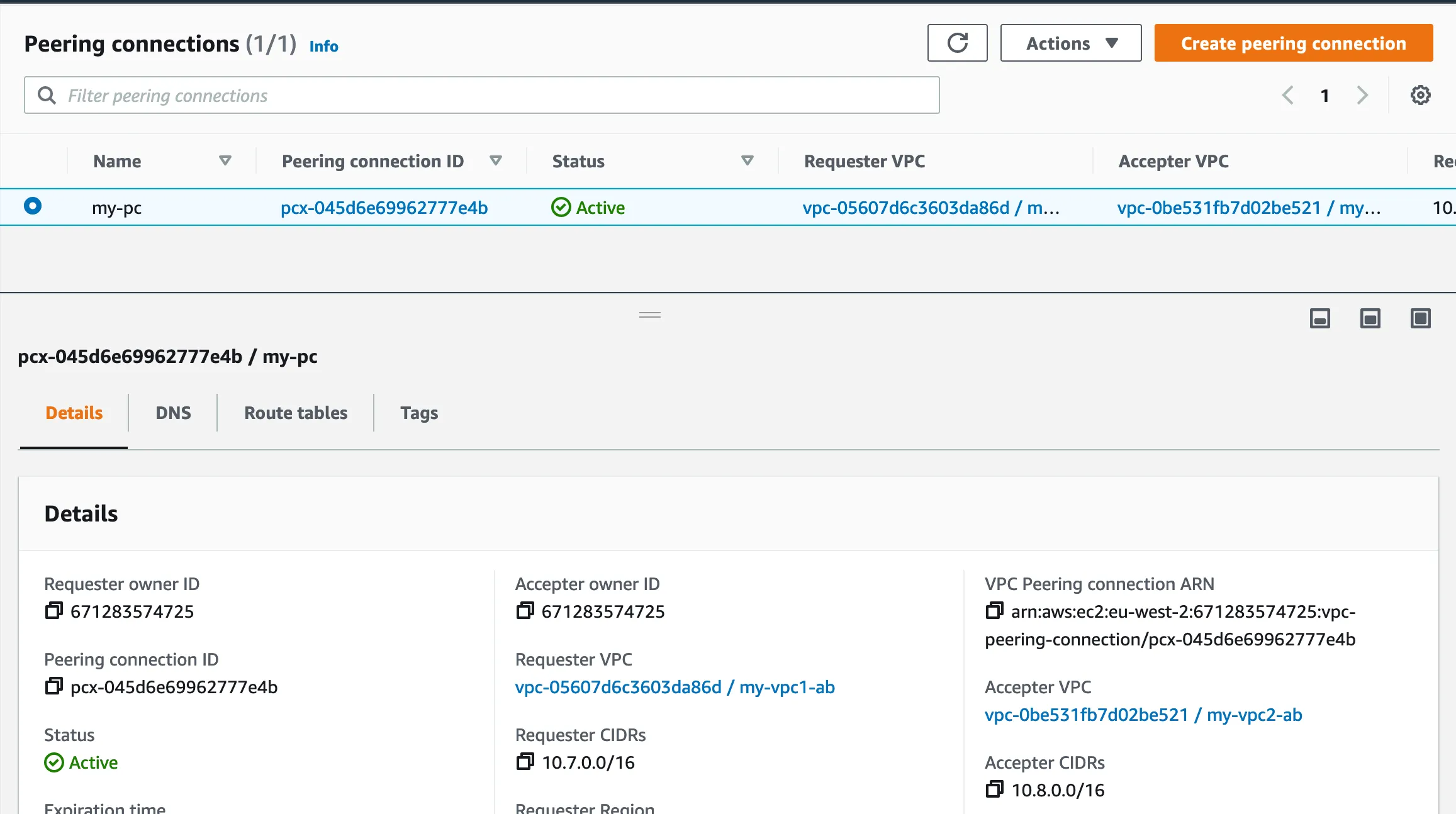

Create Peer Connection :

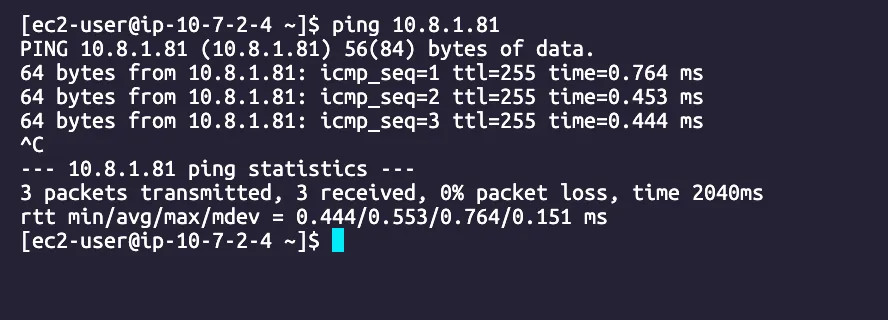

Ping AB_VM3_VPC_02

Part 2 : Create VPC on different Regions

AWS Architecture

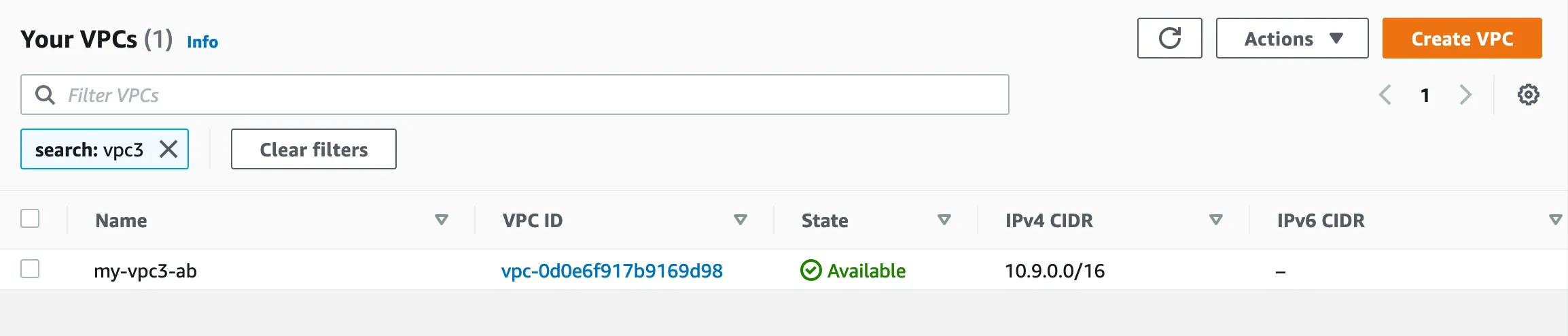

2.1 : Create a VPC_3

• Name : my-vpc3-ab = 10.9.0.0/16
• Region : eu-west-1

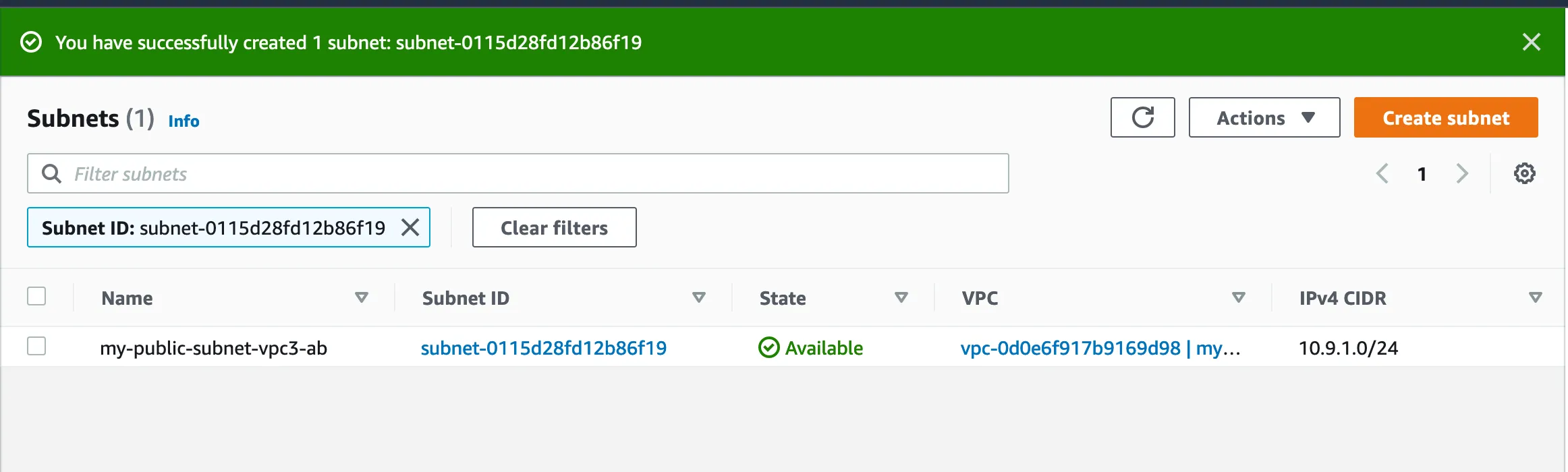

Subnet :

my-public-subnet-vpc1-ab = 10.9.1.0/24

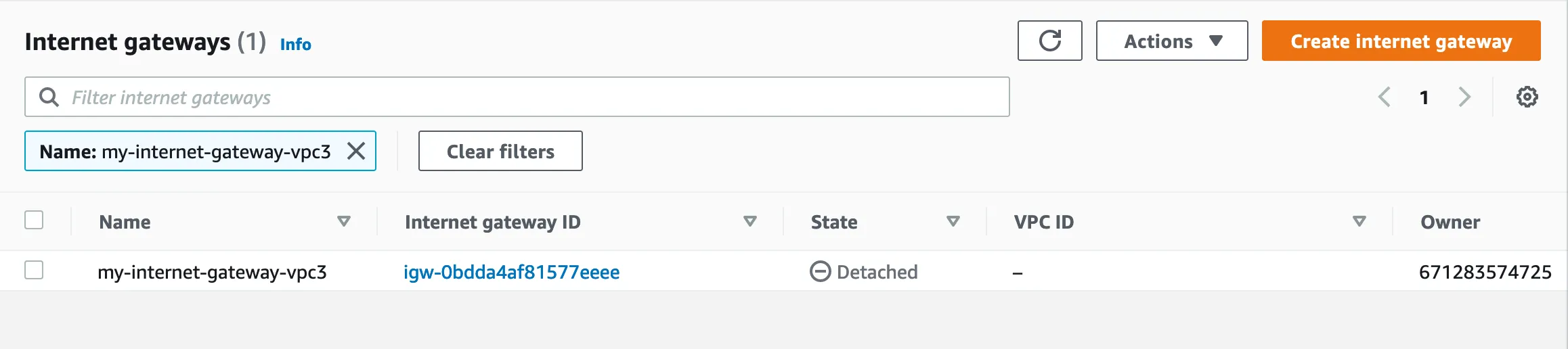

Internet Gateway : my-internet-gateway-vpc3

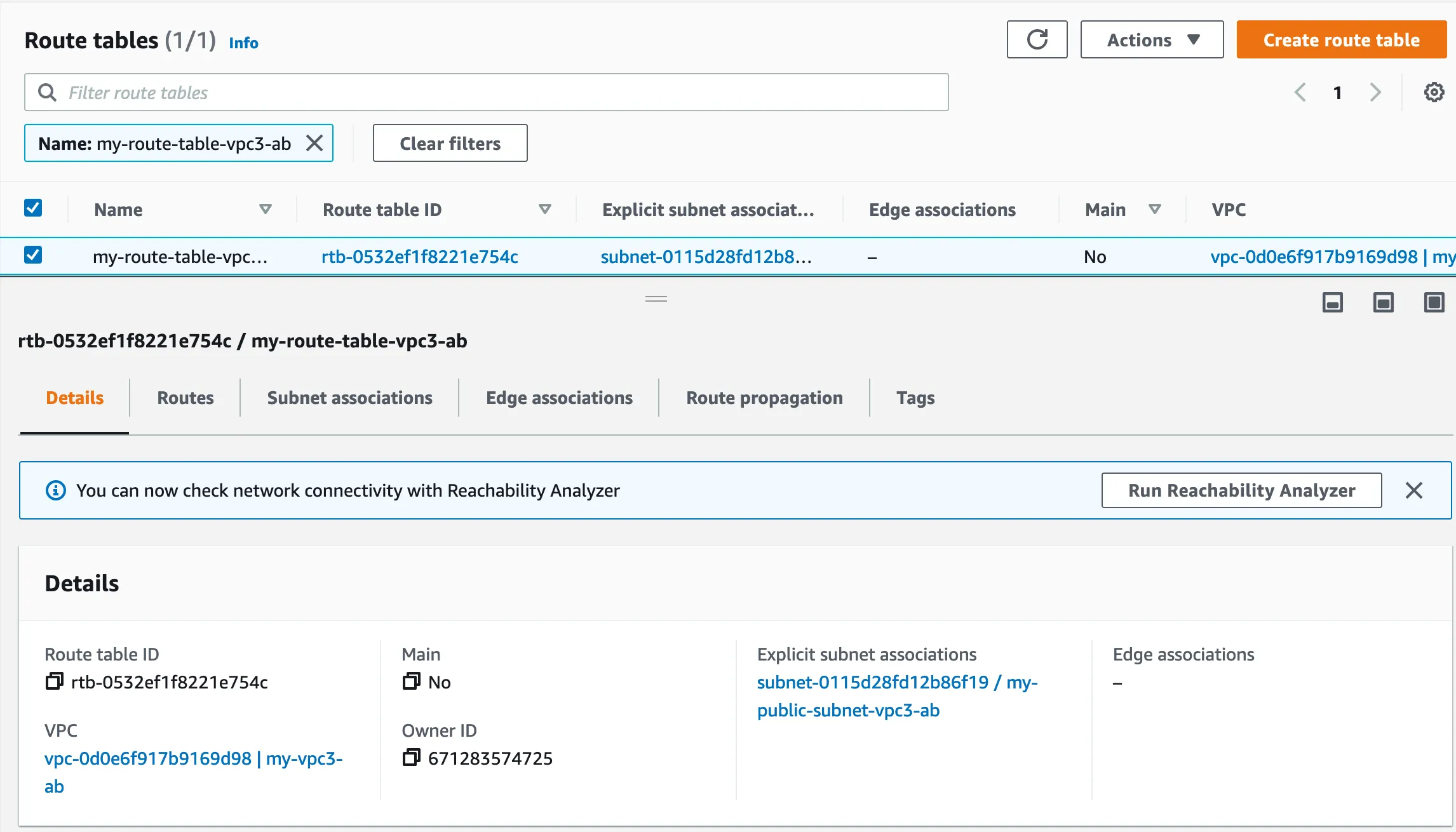

Route Table :

my-route-table-vpc3-ab

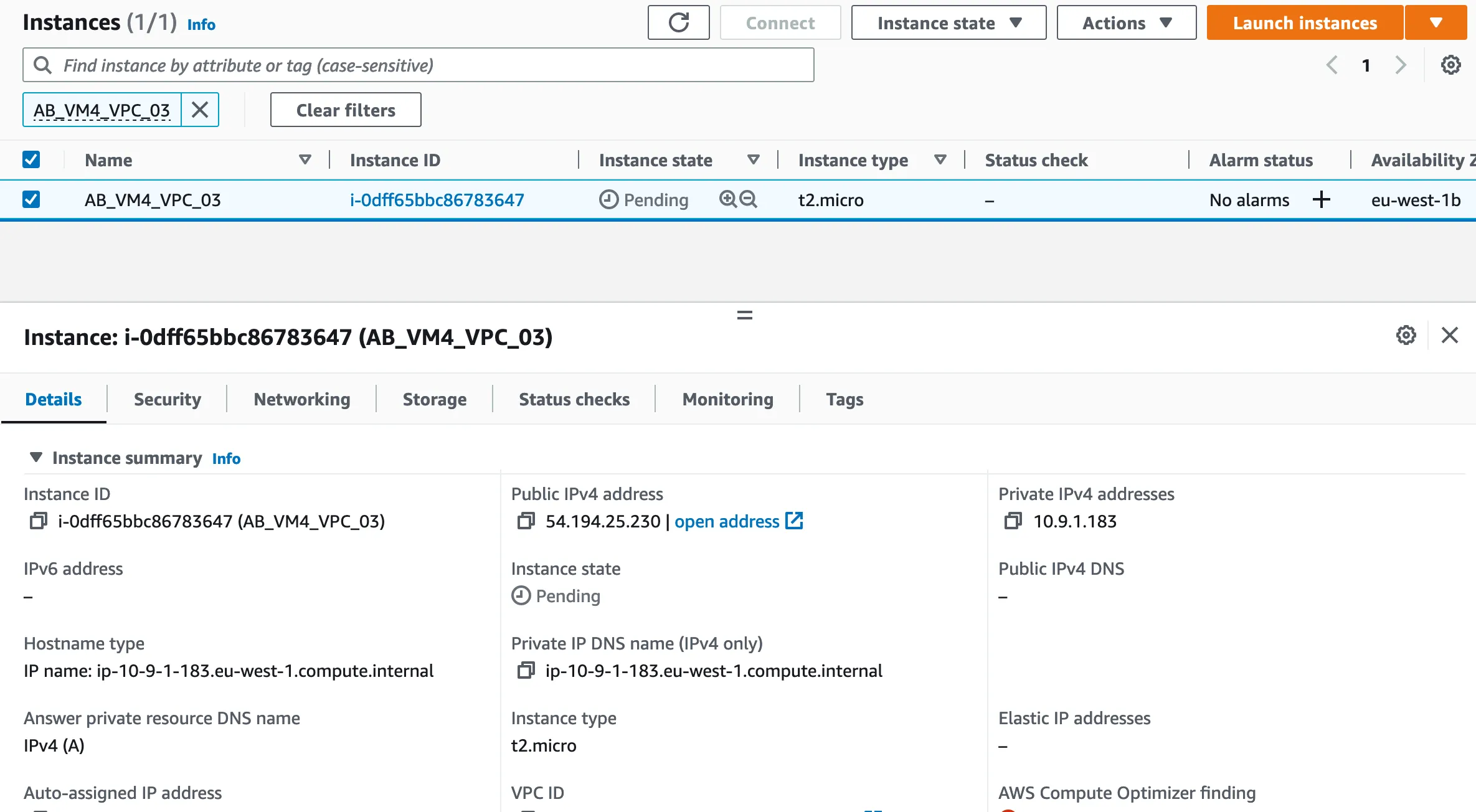

Instance creation : AB_VM4_VPC_03

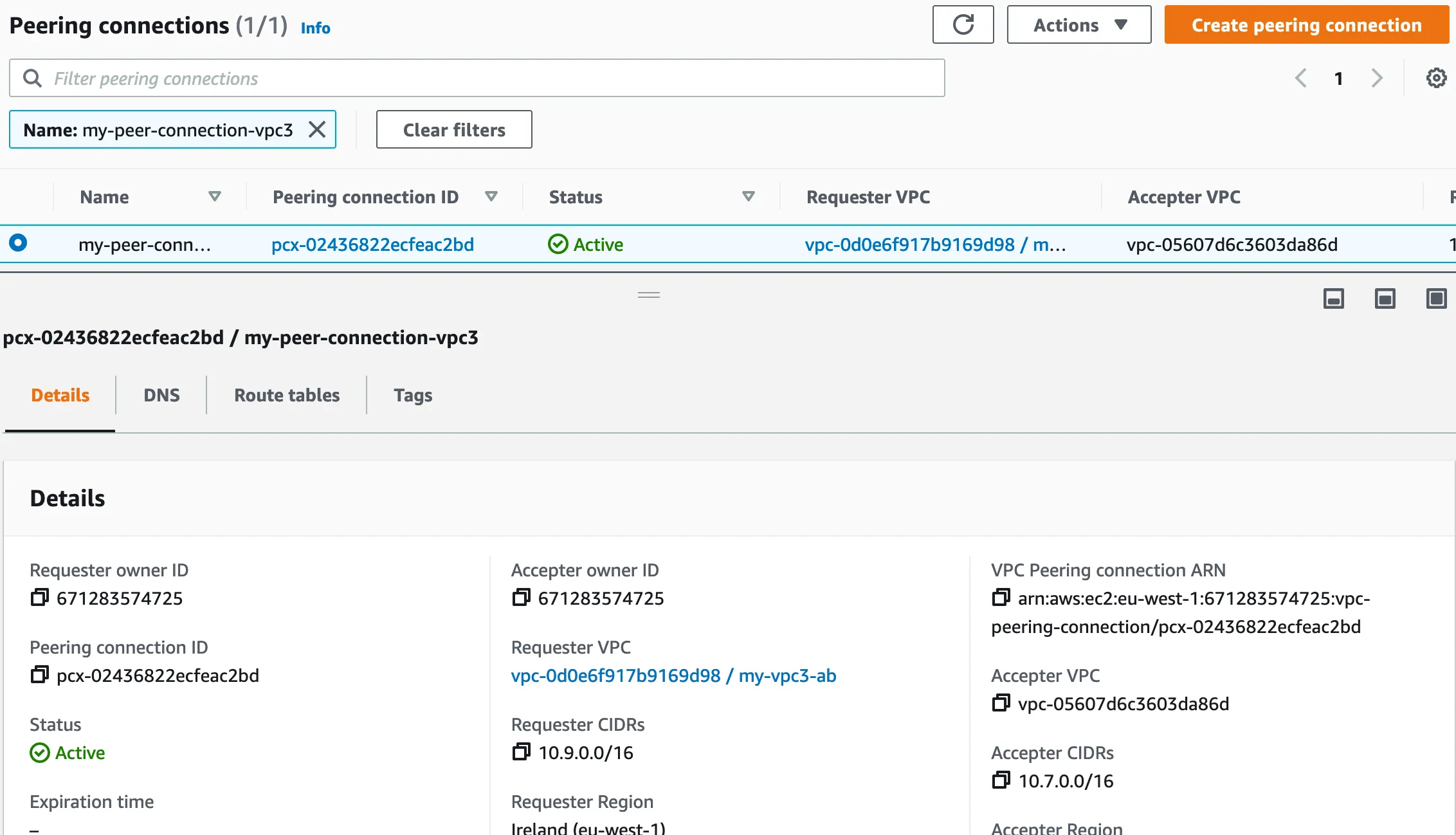

2.2 : Create a Peer Connection VPC_1 & VPC_3

A VPC peering connection is a networking connection between two VPCs that enables you to route traffic between them using private IPv4 addresses or IPv6 addresses. Instances in either VPC can communicate with each other as if they are within the same network.

2.3 : Ping test

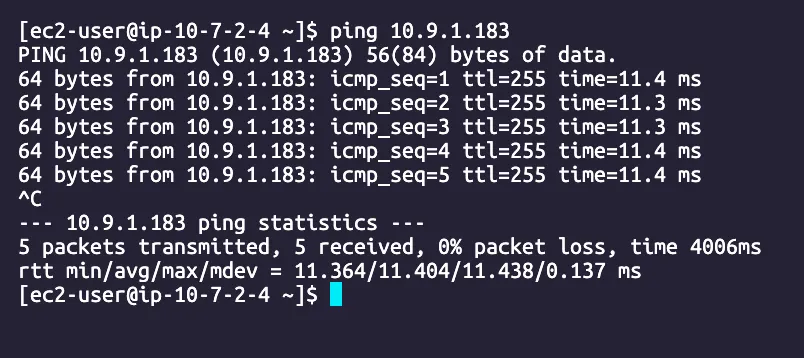

Ping AB_VM1_VPC_01 to AB_VM4_VPC_03

Part 3 : CloudWatch

3.1 : Configure log flow

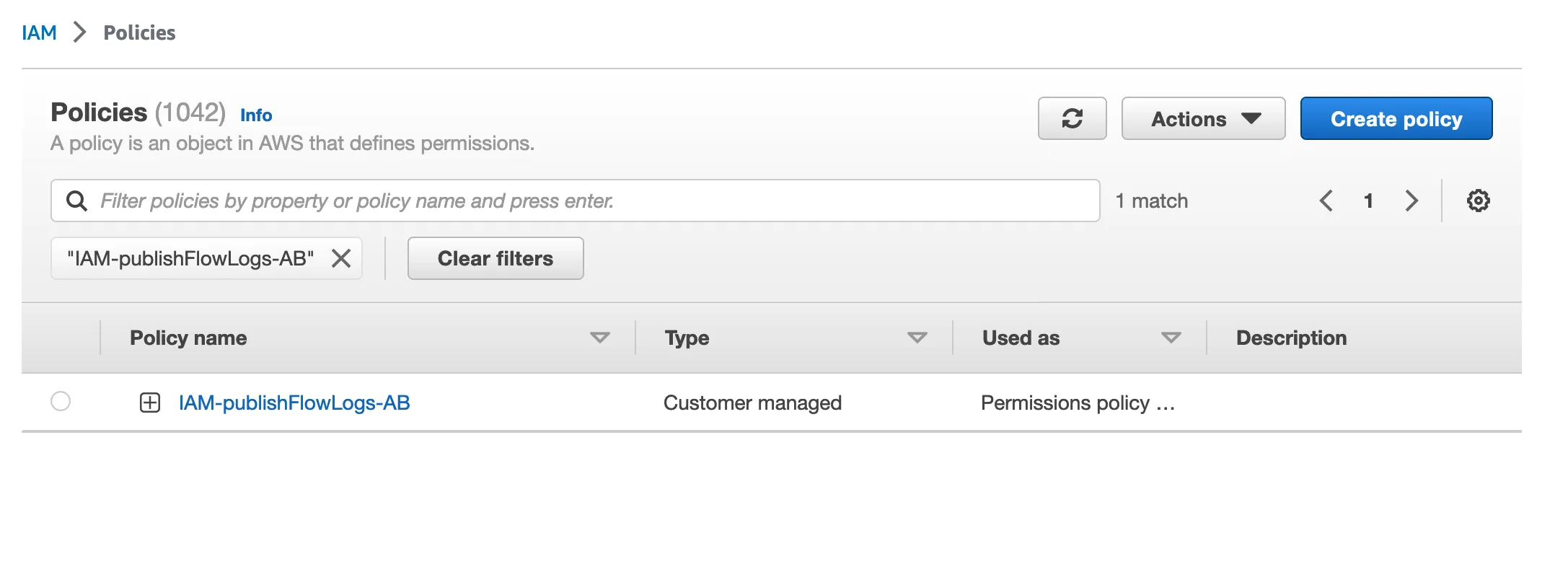

Create policie

iam.json

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Action": [
                "logs:CreateLogGroup",
                "logs:CreateLogStream",
                "logs:PutLogEvents",
                "logs:DescribeLogGroups",
                "logs:DescribeLogStreams"
            ],
            "Effect": "Allow",
            "Resource": "*"
        }
    ]
}

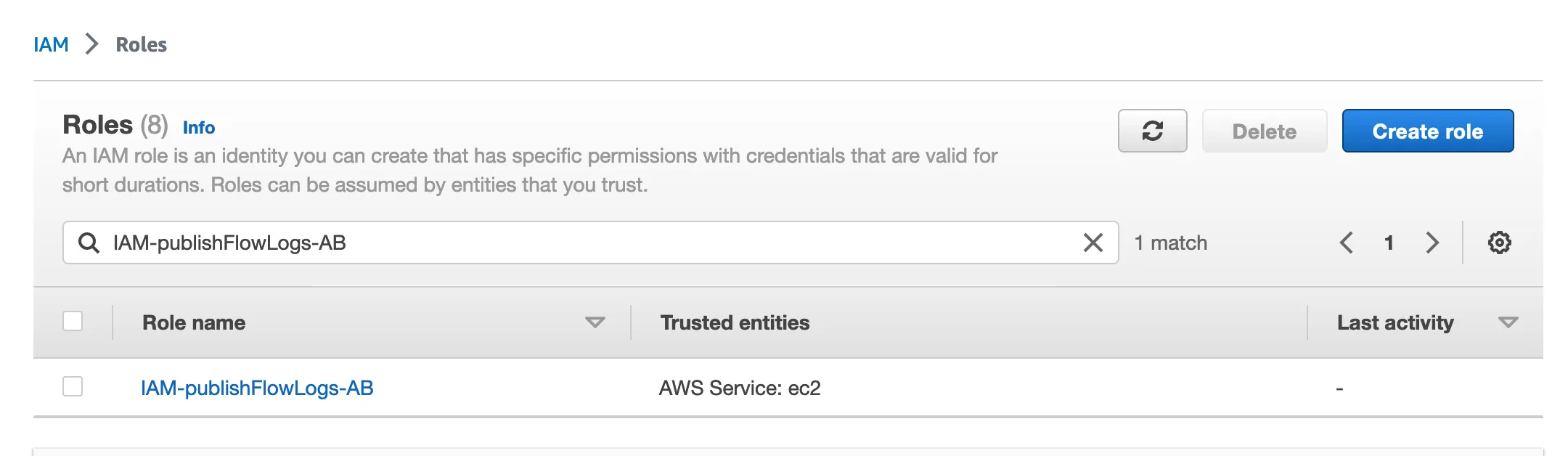

Create role

role.json

{
    "Version": "2012-10-17",
    "Statement": [
      {
        "Effect": "Allow",
        "Principal": {
           "Service": "vpc-flow-logs.amazonaws.com"
        },
        "Action": "sts:AssumeRole"
      }
    ]
}

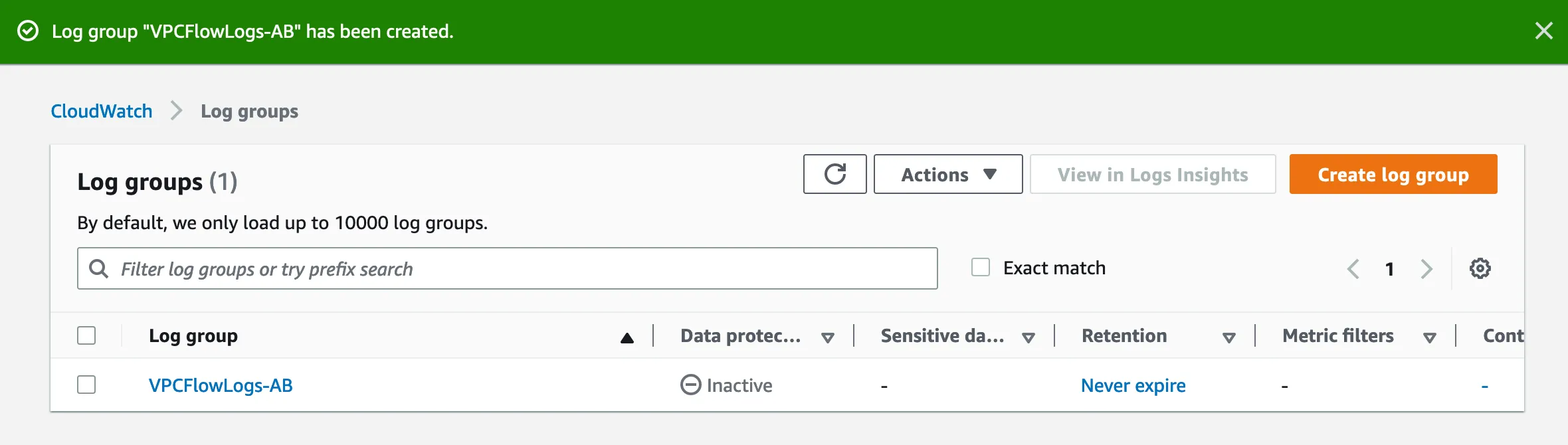

Create log group

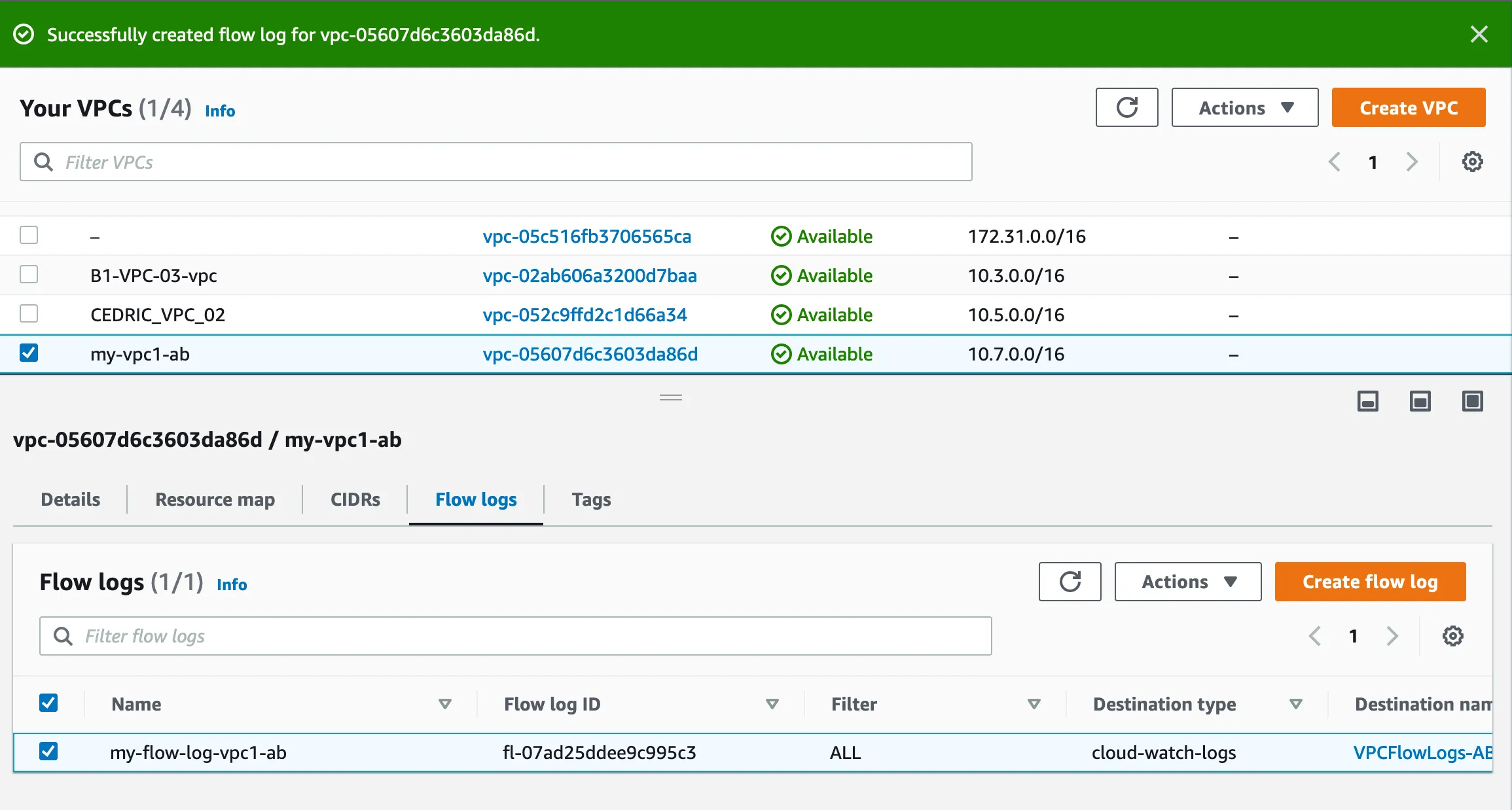

Create logs flow

3.2 : Create a web server and get logs

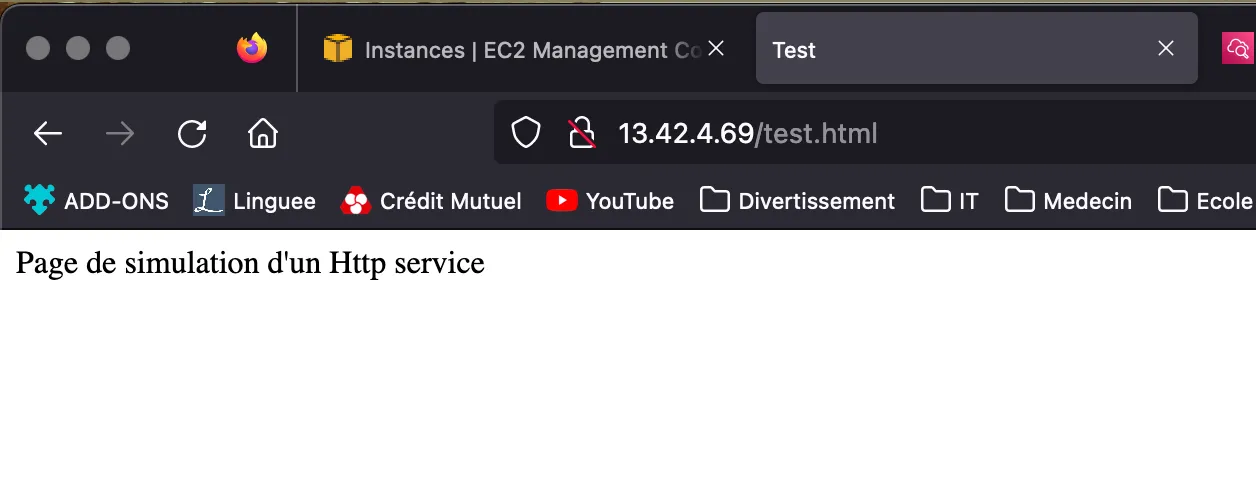

Create a web server page

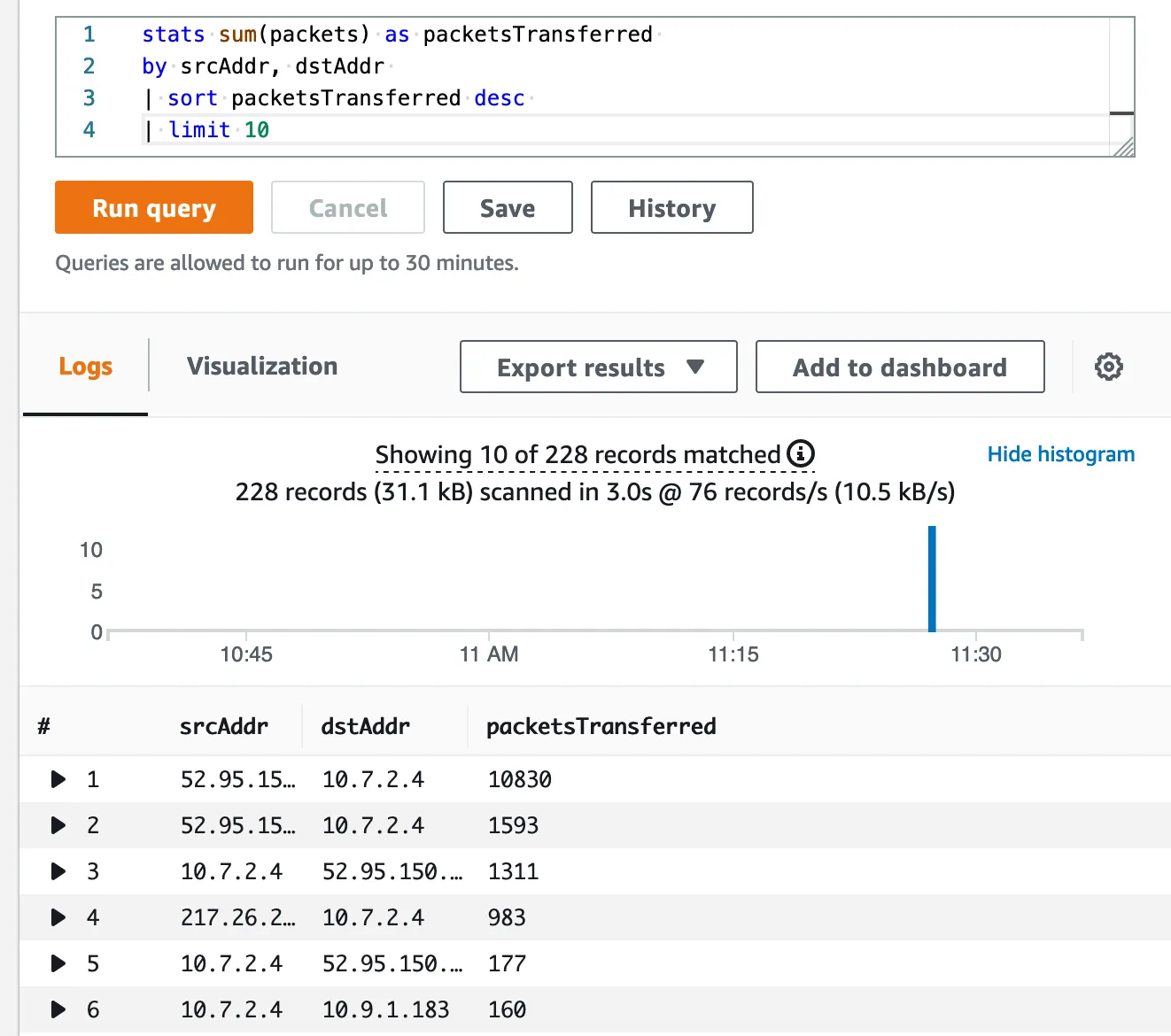

Log request 1

stats sum(packets) as packetsTransferred
by srcAddr, dstAddr
| sort packetsTransferred desc
| limit 10

Result :

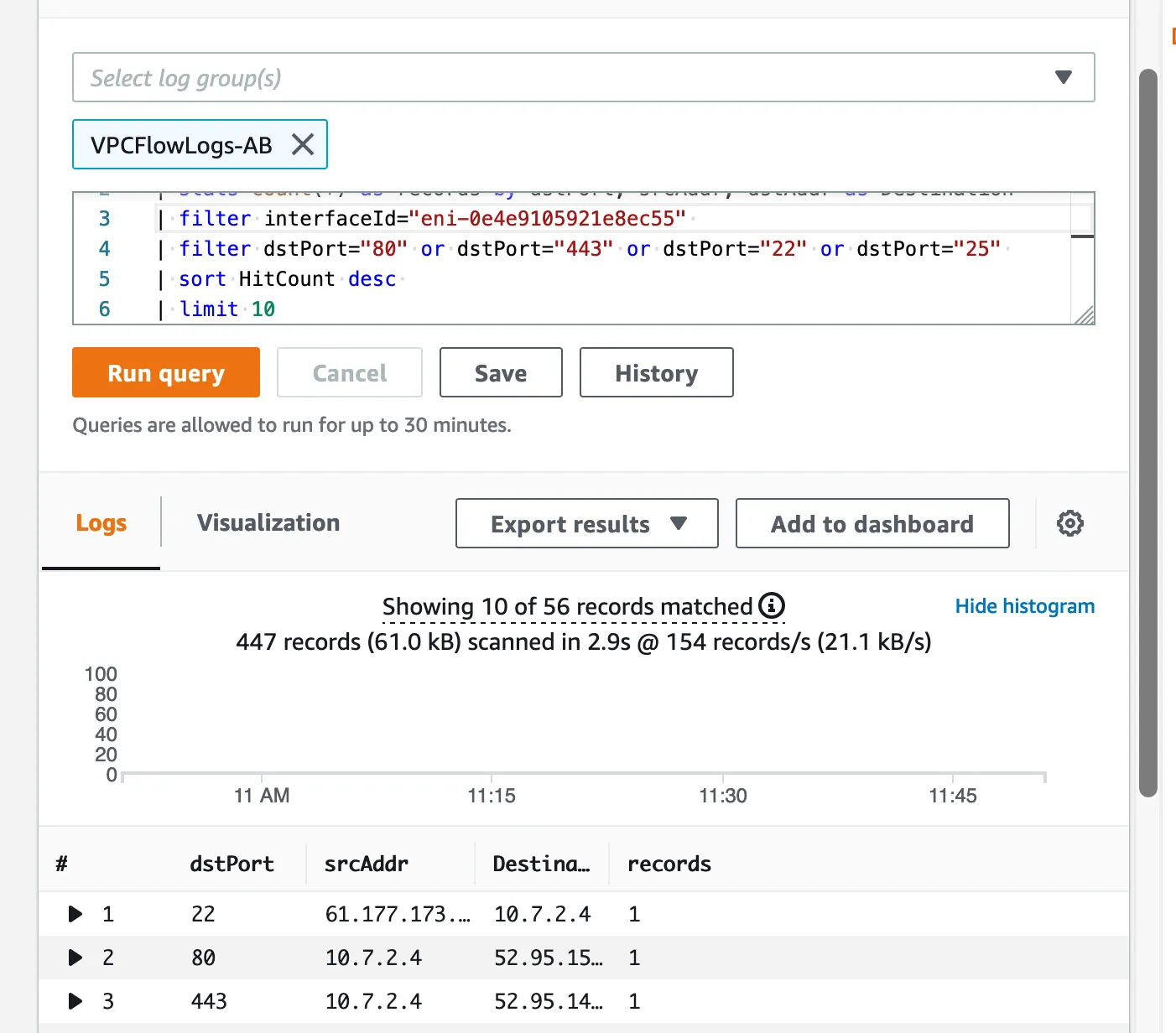

Log request 2

fields @timestamp, @message
| stats count(*) as records by dstPort, srcAddr, dstAddr as Destination
| filter interfaceId="eni-051f20d7aa3334d64"
| filter dstPort="80" or dstPort="443" or dstPort="22" or dstPort="25"
| sort HitCount desc
| limit 10

Result :
